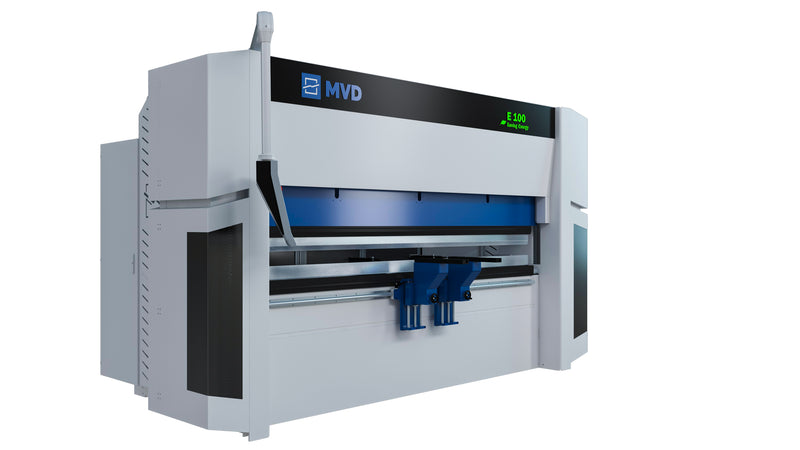

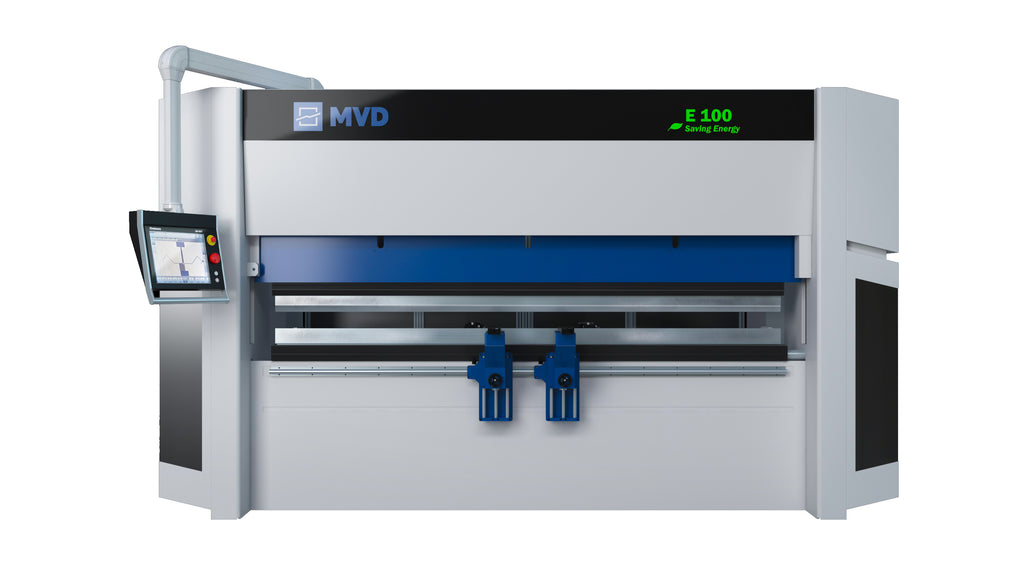

Belt driven servo press brake E Series - Bending force up to 200 ton


Pris:
Salgspris0,00 kr
Kontakt os for et tilbud

Beskrivelse

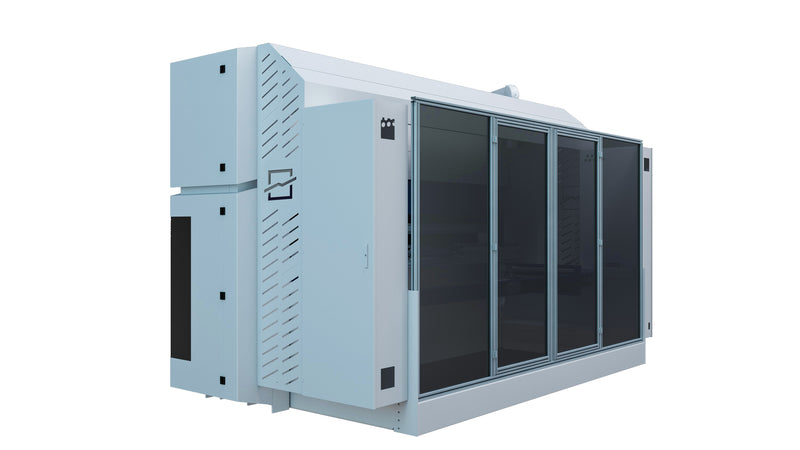

Bending operations with belt and pulley movement system are driven by 2 synchronous operated servo motors. Thanks to the springs that support the top table, energy is saved in return movements. In belt driven servo press brakes, O-Type body system is used instead of C-Type body system.

STANDARD FEATURES

  •  Y1, Y2, X, R - 4 Axis CNC
  •  ESA S630 Controller
  •  Stroke 300 mm , Throat Depth “O” - Type
  •  Servo motorized back gauge - Accuracy ±0.03 mm – X: 750 mm
  •  Back gauge finger 2 pcs, 3 stages
  •  Quick clamping promecams
  •  Narrow bottom table specific to MVD (European type)
  •  Standard punch tool ES 1260
  •  Standard die tool ES 2067
  •  High quality and precision linear rulers
  •  Laser beam front security system
  •  Led lighting
  •  Sliding front support system
  •  GIVI optic linear ruler (0.005 mm untied)
  •  Double-switch pedal


OPTIONAL FEATURES

  •  Original WILA wedge bottom table crowning system
  •  AKAS or DSP laser beam front safety system
  •  Additional back gauge fingers
  •  MVD back gauge
  •  MVD bending support AP (Sheet follower)
  •  UNIMEC back gauge
  •  UNIMEC bending support AP (Sheet follower)
  •  WILA hydraulic top and bottom die clamping

*Bending speeds above 10 mm/s are used only in robotic applications due to “CE Norms”.
**See the side page for measurement details.
***Specifications may change without notice.
