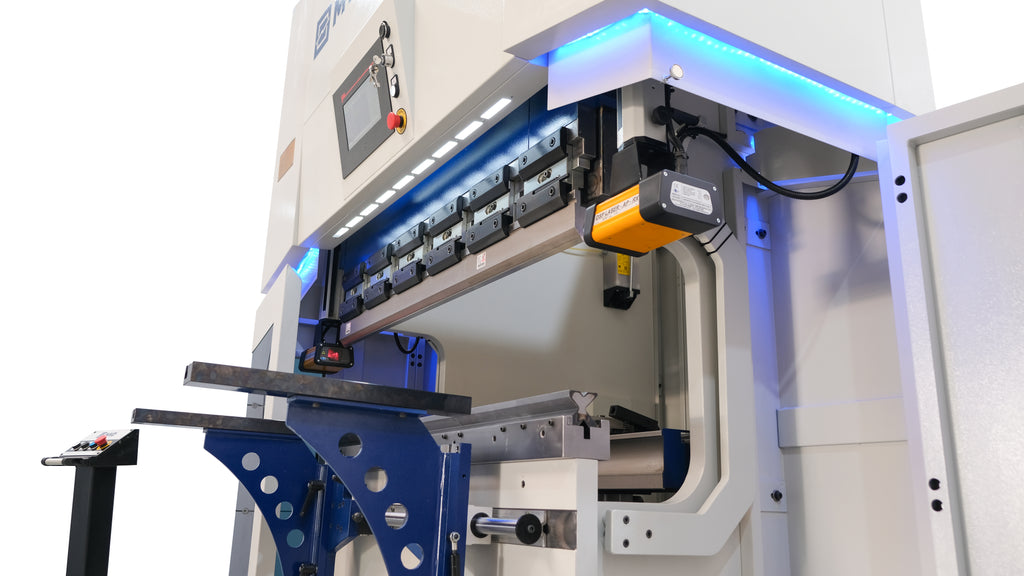

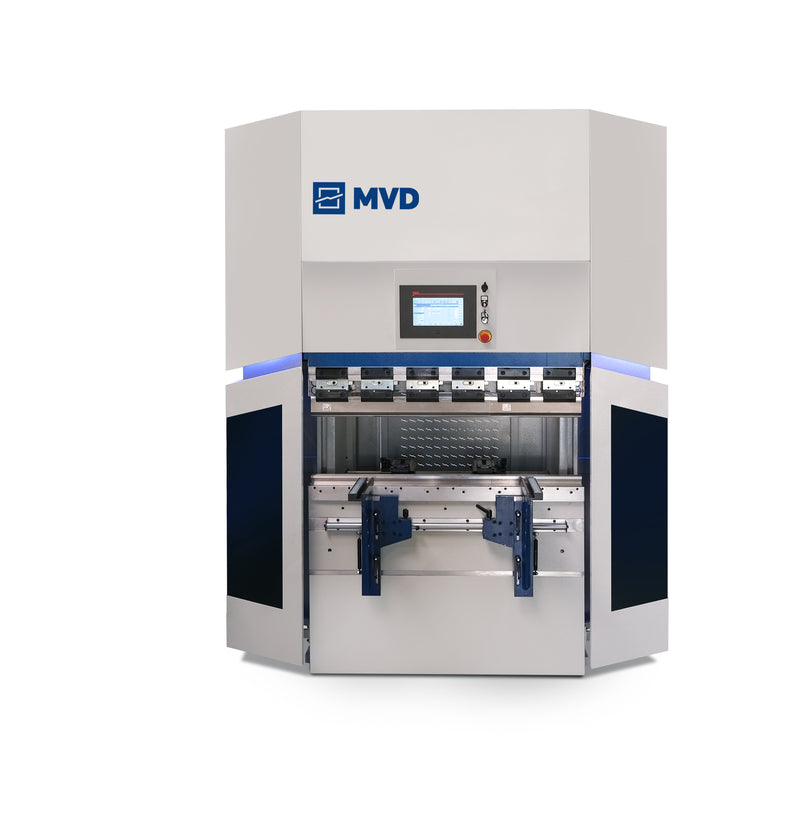

Screw driven servo press brake S Series - Bending force up to 60 ton

Rotational movement from servo motors and the torque effect is transferred to the screw shaft and nut system. Thus, the bending power is achieved with the downward movement of the top table.

STANDARD FEATURES

• Y1, Y2, X, R - 4 Axis CNC
• ESA S630 Controller
• Stroke 275 - 310 mm, Throat Depth 300 mm
• Servo motorIzed back gauge
• Back gauge finger 2 pcs, 3 stages
• Quick clamping promecam
• Narrow bottom table specific to MVD (European type)
• Standard punch tool ES 1260
• Standard die tool ES 2067
• High quality and precision linear rulers
• Laser beam front safety system
• Led lighting
• Sliding front support system
• Single pedal

OPTIONAL FEATURES

• CE comformity - AKAS or DSP Laser beam front safety system
• UNIMEC back gauge
• Front working table



*Bending speeds above 10 mm/s are used only in robotic applications due to “CE Norms”.
**See the side page for measurement details.
***Specifications may change without notice.
