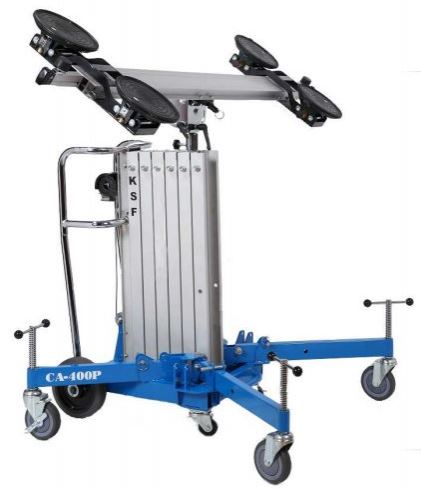

Lifting machine with electric motor
• No need to use any tools for the operation
• It take only 30 seconds to complete machine set-up.
• Masts with sliding rails
• The overall stability is ensured by 4 feet equipped with locking wheels, for use also on sloping ground
• A level ensure the proper set-up while ajusting the feet
• Equipped with handle and transport wheels to move easily on site
• Can be transported by van or estate car
• The electric lifting motor is 110 V or 220 V (with motor cover against dust)
• Electric remote control with variable speed switch.
• Manual operation is possible in case of power failure
• Automatic slipping-clutch to prevent to over weight loading.
• Emergency stop button: Pressing this button stops raising or lowering immediately
Cradle with vacuums
• Safety suction pump, diameter 200 mm (certified TÜV and GS) unit capacity 65 kg
A red line on the pump’s plumger serves as a vacuum indicator
• Designed for horizontal or vertical lifting (angle adjustment up to 90° for the CA 400 GL)
• With 4 vacuums and outriggers for glass up to 4 m

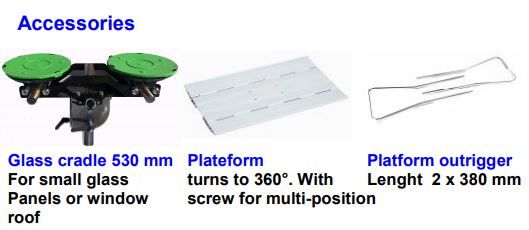

Accessories
• Platform
• Platform Outrigger
• Glass cradle 530 mm
