Beskrivelse

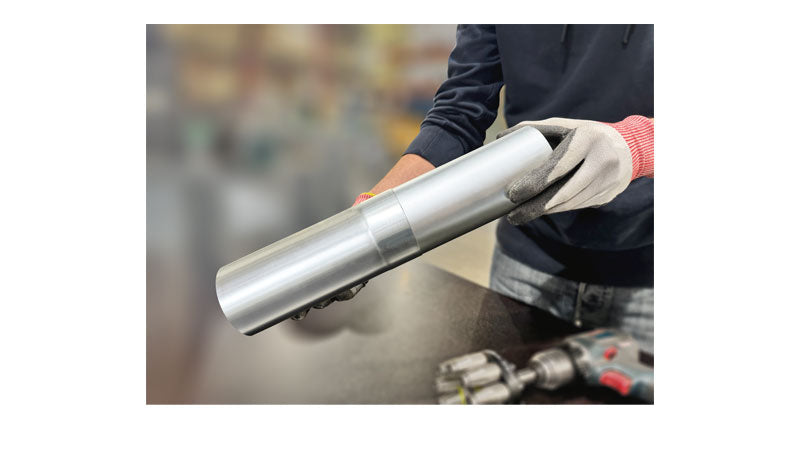

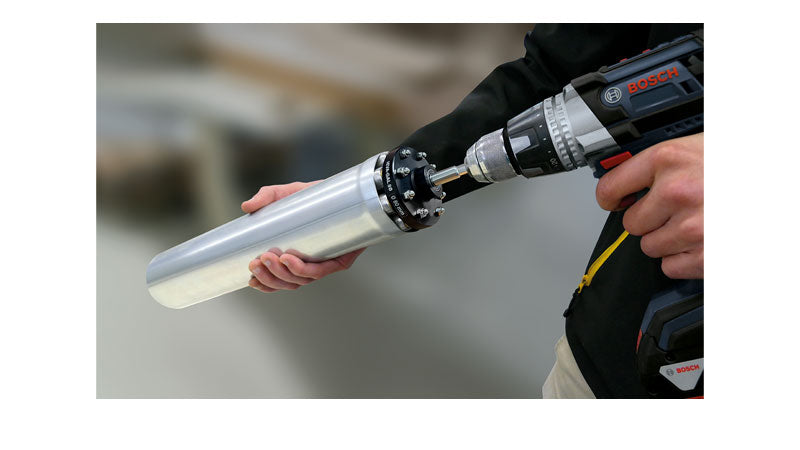

The two models of 80 and 100mm diameter flaring units for downpipes make it possible to easily and evenly expand electric welded (ERW) downpipes. Adaptable without tools on all screwguns, they will, by a simple push, create flared ends or sleeves on pipes of the same diameter for clean connections without leaks.

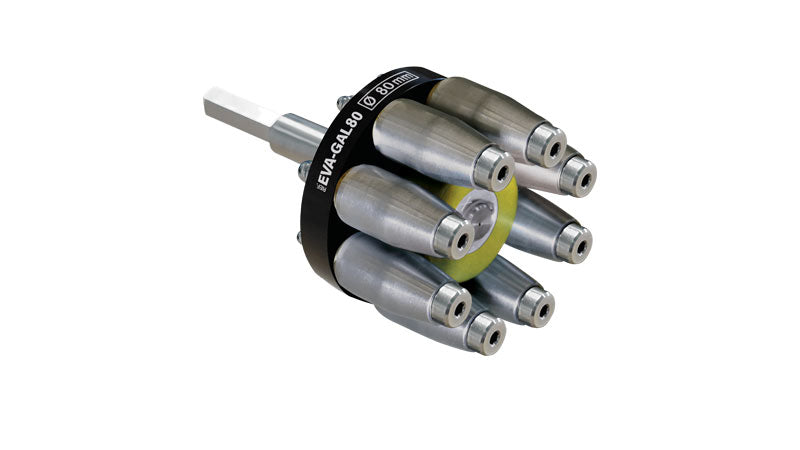

Stainless steel flaring rollers with self-lubricating bearings, mounted on black anodized aluminum block. For use on copper, zinc, stainless steel and aluminum pipes, Ø 80 and 100mm.
NB : not suitable for seamed pipes and tin welded truncated pipes.
| Number of flaring rollers for 80mm flaring unit | 9 |
| Number of flaring rollers for 100mm flaring unit | 12 |
|
Flaring depth max. (mm) |
100 |
| Flaring rate | between 150t/min and 500 t/min |
| Max. capacity 400 N/mm2 steel and stainless steel (mm) | 0.5 |
|
Max. capacity zinc / ¼ hard copper (mm) |
0.8 |
| Net weight of 80mm Ø flaring tool (kg) | 1,15 |
| Net weight of 100mm Ø flaring tool (kg) | 1,55 |
|

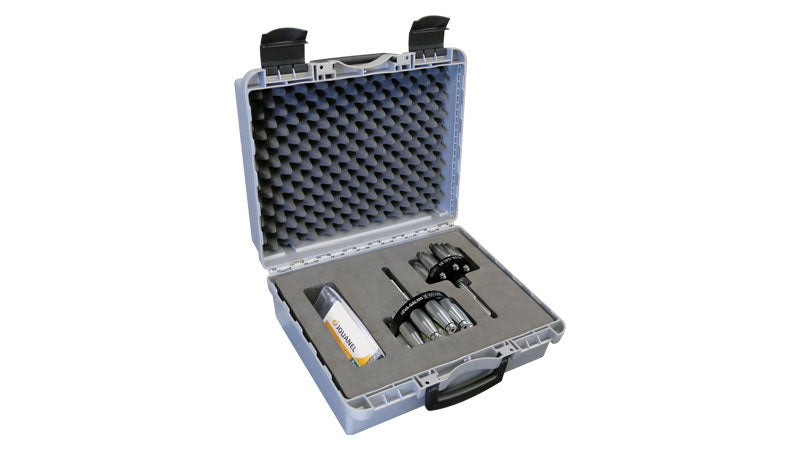

Net weight of set with carrying case (kg) |
3,70 |
| Gencode Flaring unit with 80 and 100 Ø + carrying case | 3547710491836 |
| NB : not suitable for seamed pipes and tin welded truncated pipes | |
