Beskrivelse

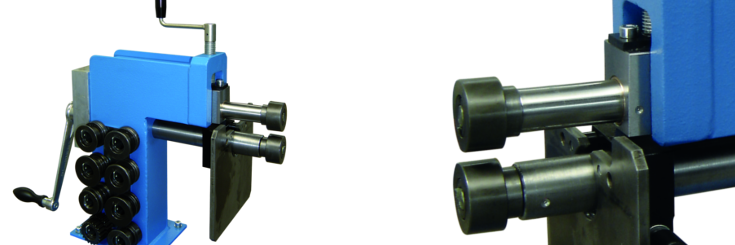

De lette, bærbare sikkemaskiner / Bertlemaskiner SM & SME 50-63 fås i en manuel og en motoriseret (SME) version.
• Modern design with precision bearings
• Quick adjustment of the the upper shaft with a stable clamping unit
• Cylindrical guiding tube of the lower shaft
• Quick and flexible adjustment of the stop plate with the guiding tube on the lower shaft
• Machine body and subframe can be dismantled for transportation
• Easy operation of the machine by electrical diverter switch and foot switch
Tekniske specifikationer
Se flere på billede nr. 2
| Type | SM 50 | SME 50 | SM 63 | SME 63 |
|
Afstand mellem centrum af rullerne |
50 mm | 50 mm | 63 mm | 63 mm |
| Throat depth |
200 mm | 200 mm | 250 mm | 250 mm |
| Pladetykkelse ( 400N/mm²) | 1,25 mm | 1,25 mm | 1,75 mm | 1,75 mm |
