Beskrivelse
MEKANISKE TRYK - C-RAMME
- Nominel kraft op til 3.150 kN
- Maks. hastighed: 120 omdr./min.
- Maks. Slaglængde: 250 mm.
OMERA Mechanical presses C-frame are based on advanced technology and known for reliability, reduced production costs and increased productivity.
C-frame presses are specifically used for blanking and manual single-stroke or automatic cycle stamping of small parts, and the range includes flying and flag presses from 63 to 315 tons.
The 63-ton is the smallest of the range, with the slide running on 4 guides. From 160-ton and up, the slide moves on 6 guides. For fast presses, the models 63 and 100 HS (High Speed) completes the range.
The machines are delivered with a large range of standard equipment and offers a lot of optional equipment.
| Model | 63R4 | 63R4/HS | |
| Norminal force | kN | 630 | 630 |
| Norminal Speed | rpm | 74 | 106 |
| Energy at nominal speed | J | 2100 | 1000 |
| Motor power + inverter | kW | 5,5 | 5,5 |
| Variable speed | rpm | 45÷104 | 65÷150 |
| Adjustable stroke | rpm | 9÷120 | 9÷120 |
| Slide adjustment | mm | 80 | 80 |
| Protrusion at centre | mm | 275 | 275 |
| Max distance 1st. table-slide at B,D,C.(*) | mm | 310 | 310 |
| Passage between the columns | mm | 310 | 310 |
| Table and 2nd. table dimensions | mm | 750x570 | 750x570 |
| Table and 2nd. table thickness | mm | 65/65 | 65/65 |
| Table discharge hole | mm | 165 | 165 |
| Slide dimensions | mm | 500x350 | 500x350 |
| Slide tang hole | mm | 50 | 50 |
| Approximate weight | kg. | 4380 | 4380 |
(*) Mesured between table and slide with closed die at max. stroke

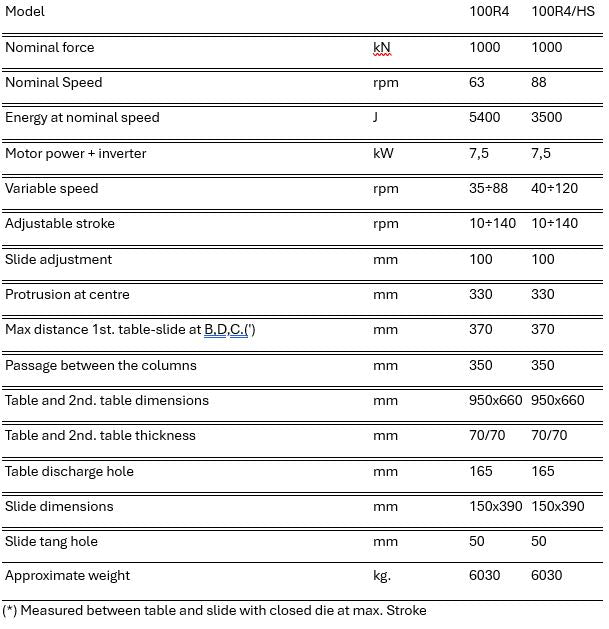

Download datablad for OMERA Mekanisk Presse C-Frame 100R4 her
Download datablad for OMERA Mekanisk Presse C-Frame 120R4 her
Download datablad for OMERA Mekanisk Presse C-Frame 160R6 her

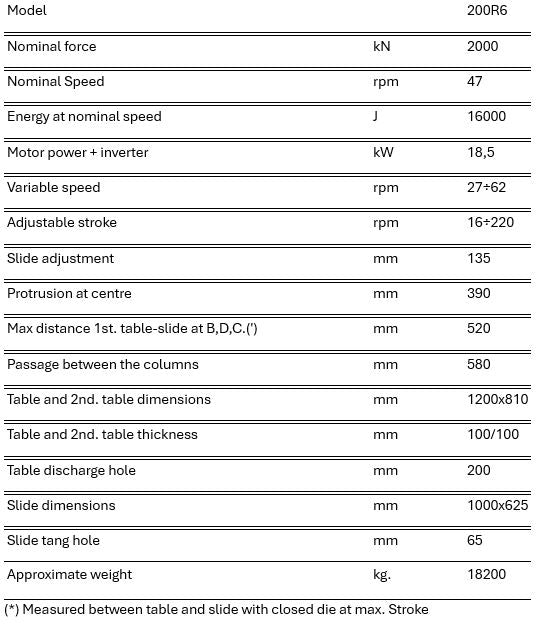

Download datablad for OMERA Mekanisk Presse C-Frame 200R6 her

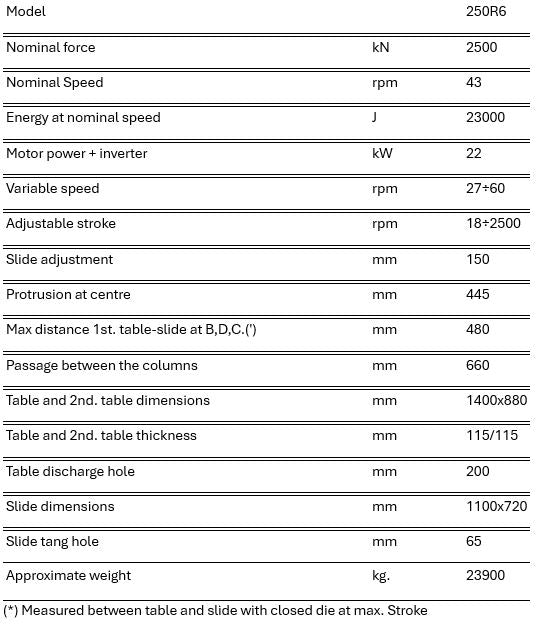

Download datablad for OMERA Mekanisk Presse C-Frame 250R6 her
Download datablad for OMERA Mekanisk Presse C-Frame 63R4 her
