Features
- New Generation advanced IGBT Inverter Technology controlled by MCU core processor
- Digital and full functional display
- Equipped with voltage protection and thermal protection
- User-friendly

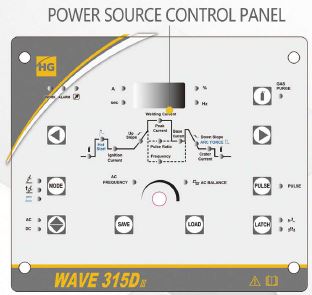

- Welding mode, AC/DC, Pulse, 2T/4T, parameter +/- and gas checking selections/settings buttons
- Adjustable & displayable gas pre-flow/post flow, AC frequency/balance, ignition/base/peak current, simply welding procedure parameters
- Adjustable, Hot Start, Arc Force and built-in Anti-Sticking for MMA welding
- Steeples welding current/setting knob
- power, overload and under/over-voltage LED indicator
- easy welding cable connections with European type quick connectors
- Foot pedal control can be used
| Input Power (V) | 400 |
| Rated Input Current (A) | 21 |
| Rated Input Capacity (kVA) | 14.5 |
| Rated Open Circuit Voltage (V) | 70 |
| Welding Current Adjustment Range (A) | DC TIG 10-315/ ACTIG 20-315 / MMA20-250 |
| Weight (kg) | 87 |

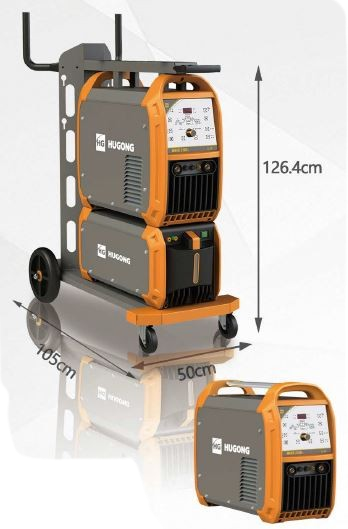

| Dimenssions (LxWxH) | 1050 x 500 x 1264 mm |
| Rated Output (A) (20°C) / (40°C) | 60% 35% 315 |
